3.1 AJAX

AJAX

AJAX (short for Asynchronous Javascript And XML) is a way to send and retrieve data from a server without doing a full page refresh. For example, we could dynamically fetch data from a server when users type in some keywords in a textbox, similar to what we see in the autocomplete feature in Google search engine.

XMLHttpRequest Object

In order to achieve asynchronous retrieval from a server in the web browser, traditionally, we use the XMLHttpRequest object. The codes look something like this:

Copy
var xhr;
if (window.XMLHttpRequest) {
  //Mozilla, Safari, etc
  xhr = new XMLHttpRequest();
} else if (window.ActiveXObject) {
  //IE
  try {
    xhr = new ActiveXObject("Msxml2.XMLHTTP");
  } catch (e) {
    try {
      xhr = new ActiveXObject("Microsoft.XMLHTTP");
    } catch (e) {}
  }
}

//define a handler to process the data when it is available
xhr.onreadystatechange = function () {
  if (this.readyState == 4 && this.status == 200) {
    document.getElementById("container1").innerHTML = this.responseText;
  }
};

//define the url and the type of request
xhr.open("GET", "some_url.jsp");

//actually sending the network request
xhr.send(null);

As we can see, it is really tedious to just make an AJAX request. This is probably what is done 10 years ago before we had jQuery. For someone who was not doing web development before and after AJAX, you would probably not realize that this is the building blocks of AJAX to begin with. Instead you would have been using the $.getJSON(), $,post(), and $.ajax() methods provided by jQuery to do AJAX request.

Making AJAX request using jQuery

Comparatively, jQuery provided a cleaner approach for making AJAX request.

Copy
//getPeople.jsp:
[
  { name: "jane", age: 20 },
  { name: "tom", age: 24 },
];

Copy
//doing a GET request to get the JSON data from
//getPeople.jsp
$.getJSON("getPeople.jsp", function (data) {
  $.each(data, function (index, person) {
    //success callback
    console.log(person.name);
  });
}).fail(function () {
  //(optional) callback to capture failure case
});

There are many tutorials online on examples to make AJAX requests using jQuery. Even the official documentation page provided many examples as to how to do it. We will not discuss it much here.

If you wanted a lightweight library to do clean AJAX request without the other functions that jQuery provides, you can also choose

Fetch API

More recently, JS has come up with its own built-in API (similar to that of jQuery and axios) that provided a cleaner way to make AJAX request. It is now more or less supported by most modern web browsers nowadays (but if you need it to work for even older browsers, the safer bet is to use jQuery or axios, or use the

Since we have already shown some examples of the Fetch API in previous sections, the syntax should be familiar.

To make a request, we use the fetch() function call. This method call will return a Promise.

Copy
//to make a GET request to an url
//syntax:
//fetch(url) returns a promise
//resolve the promise by calling the then() method
fetch("https://jsonplaceholder.typicode.com/users/1").then((res) => {
  //res = the response object

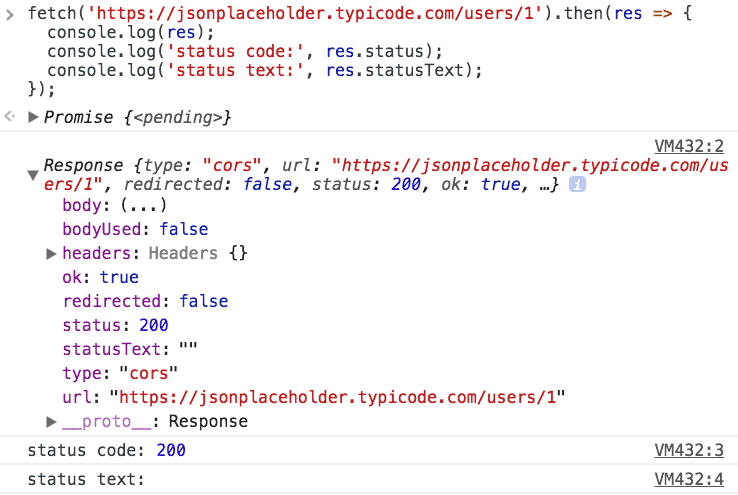

  console.log(res); //see below
  console.log("status code:", res.status); //print status code : e.g. 200
  console.log("status text:", res.statusText); //print status text
});

Notice that res is really just another Promise object. From this object, it is possible to get some of response related information (e.g. status code). To get the body of the fetch request, we can then resolve this Promise object by chaining it with another then(). For example, if the response is JSON, we can call res.json() which will return another promise, and finally call then() again to resolve this new promise in order to get the JSON object.

Copy
fetch("https://jsonplaceholder.typicode.com/users/1")
  .then((res) => {
    return res.json();
  })
  .then((json) => {
    console.log(json);
    //object:
    //{id: 1, name: "Leanne Graham", … }
  });

//or simply just
fetch("https://jsonplaceholder.typicode.com/users/1")
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
    //object:
    //{id: 1, name: "Leanne Graham", … }
  });

Note that we cannot just do console.log(res.json()). We need to resolve the promise in order to get the JSON object.

Copy
fetch("https://jsonplaceholder.typicode.com/users/1").then((res) => {
  const json = res.json();
  console.log(json);
  //Promise {<resolved>: {…}}
});

Working with Text

Suppose the URL returns text rather than JSON, it is also possible to call the text() method.

Copy
fetch("https://jsonplaceholder.typicode.com/users/1")
  .then((res) => res.text())
  .then((text) => {
    console.log(text);
    //return text rather than object
  });

Working with Binary

There is also a blob() for fetching binary type (e.g. images).

Copy
fetch("some_image.jpg")
  .then((res) => res.blob())
  .then((data) => {
    //...
  });

Other Request Options

So far, the above fetch() calls deal with only GET requests. It is possible to do other types of requests (e.g. POST, DELETE, etc).

Sending data

Suppose we want to do a POST request, and send some data to a RESTful API. We can still use the fetch() method but now supplying a second parameter containing a method property and a body property. JSON is an object with 2 useful methods: stringify() and parse(). stringify() allows us to convert a JS object into a JSON string. Conversely, parse() allows us to convert a JSON string into a JS object.

Copy
//data to send
const data = { name: "John" };
fetch("https://jsonplaceholder.typicode.com/users", {
  //body is use to capture the data to be sent
  //sending post data as a json string
  body: JSON.stringify(data),
  headers: { "Content-Type": "application/json" },

  //POST request
  method: "POST",
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
    //{id: 11}
  });

console.log(JSON.stringify(data));
//{"name":"John"}

We can also choose not to do JSON.stringify(data) for the body property. This will be as if it were a Form POST with a field called name and value John.

Copy
//data to send
const data = { name: "John" };
fetch("https://jsonplaceholder.typicode.com/users", {
  //similar to posting to:
  //https://jsonplaceholder.typicode.com/users?name=john
  body: data,
  method: "POST",
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
    //{id: 11}
  });

If we need to upload a file (e.g. getting data from <input type="file" />, it is possible to use the FormData object.

Copy
const formData = new FormData();
const fileField = document.querySelector('input[type="file"]');

formData.append("some_field", "some_value");
formData.append("profile_image", fileField.files[0]);

fetch("https://jsonplaceholder.typicode.com/users", {
  body: formData,
  method: "POST",
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
  });

Other types of request

When dealing with RESTful API, it is quite common that we will deal with other types of methods such as PUT, DELETE, PATCH, etc. We can modify the method property accordingly.

Copy
//e.g. of a DELETE request
fetch("https://jsonplaceholder.typicode.com/users/1", {
  method: "DELETE",
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
    //{}
  });

headers property

We can also use the headers property to supply any header. This is used for example to indicate expected content type or to supply authorization tokens.

Copy
//specify headers
fetch("https://jsonplaceholder.typicode.com/users/1", {
  method: "GET",
  headers: {
    Accept: "application/json",
    "Content-Type": "application/json",
  },
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
  });

Copy
//specify headers
fetch("https://jsonplaceholder.typicode.com/users/1", {
  method: "GET",
  headers: {
    Authorization: "Bearer SOME_TOKEN_STRING",
  },
})
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
  });

Error Handling

Error handling while using the Fetch API is the same as how we would for normal Promises by using catch().

Copy
fetch("http://invalid_url")
  .then((res) => res.json())
  .then((json) => {
    console.log(json);
  })
  .catch((err) => {
    console.log("Error: ", err);
    //Error:  TypeError: Failed to fetch
  });

Cross-Origin Resource Sharing (CORS)

When dealing with AJAX request to a webserver, one thing to take note is by default, web browsers will prevent you from fetching content from another domain name (or same domain name with different ports) using AJAX. For example, if our webpage is at http://www.mydomain.com/index.jsp and we are trying to POST to http://www.anotherdomain.com/person, it is quite likely that the browser will be unable to successfully execute the POST AJAX request due to security reasons.

In order to tell the browser to allow such a scenario to happen, the webserver at http://www.anotherdomain.com/ has to enable the additional CORS headers explicitly indicating that it can do the request from http://www.domain.com. The steps to enable this CORS will differ depending on the webserver backend technology used. There are various tutorials online discussing the steps depending on the backend technology used and you are encouraged to Google when there is a need to allow such a scenario.
